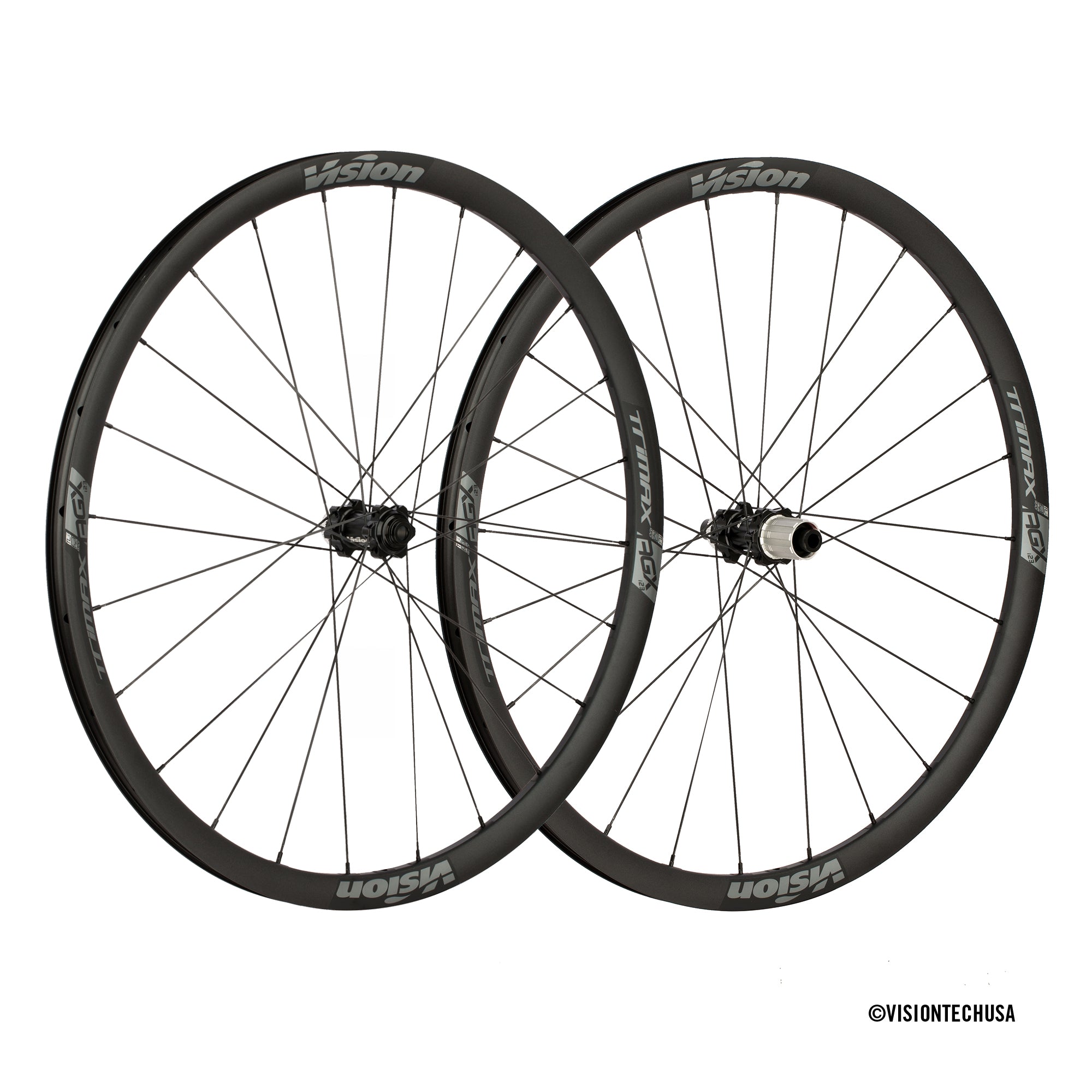

Trimax AGX i23 Wheelset (GRAVEL) - Disc Brake

Vision Trimax Aero‑Gravel — Fast, Stable & Purpose‑Built for Performance Gravel

The Vision Trimax Aero‑Gravel wheelset is engineered for riders who want speed, stability and durability on modern performance gravel bikes. With its semi‑aero rim profile and generous 23mm internal width, this wheelset delivers confident handling, improved tyre support and efficient rolling across mixed terrain.

Built around a 30mm deep alloy rim, CNC‑machined aluminium hubs and aero‑bladed direct‑pull spokes, the Trimax Aero‑Gravel combines strength with responsiveness. Six sealed cartridge bearings ensure smooth, reliable performance, while the tubeless‑ready clincher design enhances comfort, grip and puncture protection. Hand‑built to Vision’s artisanal standards, this wheelset is ready for fast gravel racing, long adventure rides and everything in between.

Key Performance Highlights -

Semi‑Aero Alloy Rim:  A 30mm deep profile improves speed and stability while maintaining durability for rough gravel surfaces.

23mm Internal Width:  Optimised for modern high‑volume gravel tyres, improving support, traction and comfort.

CNC‑Machined Hubs:  Precision‑machined aluminium hubs with six sealed cartridge bearings deliver smooth rolling and long‑term reliability.  Aero‑Bladed Direct‑Pull Spokes.  21 spokes front / 24 spokes rear.  2:1 lacing pattern for balanced tension and efficient power transfer.  ABS self‑locking nipples for consistent performance.

Hand‑Built Craftsmanship:  Each wheel is assembled entirely by hand for perfect spoke tension, durability and premium ride quality.

Features -

Alloy rim
30mm rim depth
Tubeless Ready – Clincher
Centerlock rotor mount
TA‑12 and X‑12 compatibility
CNC‑machined aluminium hubs
6 sealed cartridge bearings (2F + 4R)
Aero‑bladed direct‑pull spokes — 21F / 24R
ABS self‑locking nipples
Hand‑built construction

Freehub Options - Alloy freehub: Shimano 10–11 speed, SRAM XDR.

Specifications -

Type: Wheelset
Technology: AGX, ABS, Tubeless Ready
Discipline: Gravel
Material: Alloy
Weight: 1640g
